Business & Commercial
Business & Commercial Energy Storage Systems (ESS)
COMP HC 30
COMP business and commercial power systems are customised to meet customer power and load requirements. They are designed as independent micro-grid to provide reliable electric power to industry, communities, Estates, Universities, Churches, Airports and many other commercial and industrial facilities with huge power requirements.
The systems can work both on off-grid or on-grid modus to power various heavy loads l They automatically store power from solar panels, grid or fuel generators and thanks to the inbuilt UPS, seamlessly powers the loads when the external power is not available.

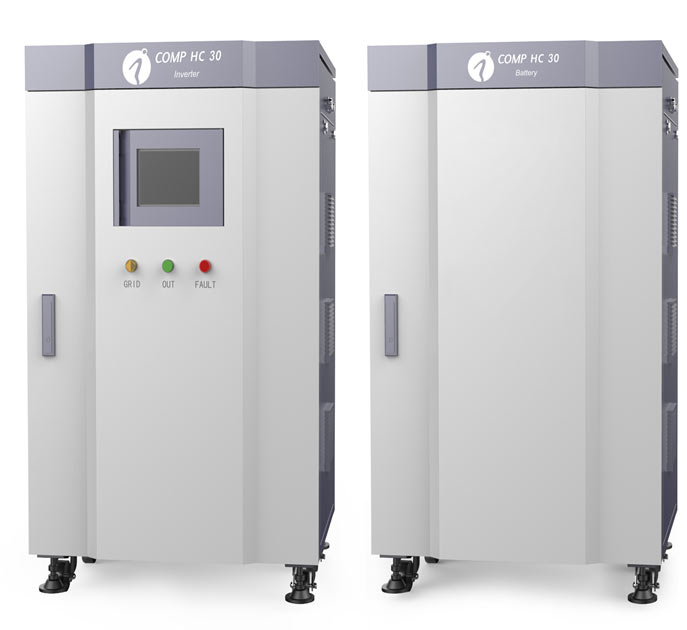

COMP HC 30
Suitable to power a big house or office building including 3x 2HP A/C
Features
- 3-Phase On-/ Offgrid Micro grid system
- 2 Cabinets: Battery and Inverter
- Battery capacity 32KWh /52V /615Ah
- Inverter output power 15KW
- Output voltage 230/400V 3-Phase/N/PE
- UPS Function
- AC Input frequency 45 – 55Hz
- AC charge power 7500W
- PV input 16000W (4 x 4000KWp)
- MPPT input voltage range 70 – 140V
- Working Temperature range 0 – 45°C
- Remote mobile monitoring
- 5yr Battery warranty
- Battery cabinet HxWxD 1360x800x645 mm
- Inverter cabinet HxWxD 1360x800x645 mm

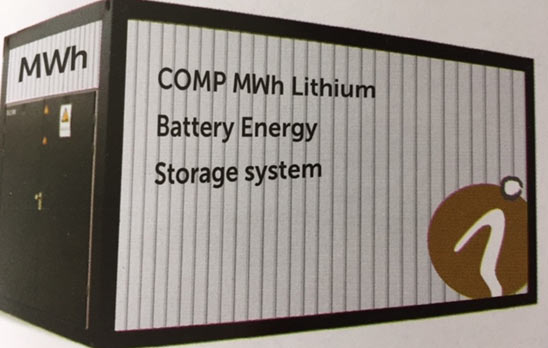

Customized container Storage systems
General features
- 3-Phase On-/ Offgrid Micro grid system
- NMC Lithium Battery capacity : 60KWh – 2MWh
- DOD: 80%
- Inverter output power: 30 – 1500KVA
- Connection voltage: 400VAC
- Rated voltage / Voltage range: Customer specific
- Rated frequency :50 / 60 Hz
- UPS function
- AC Input frequency : Customer specific
- AC charge power : Customer specific
- Total harmonic distortion: < 5%
- DC voltage range: 700 – 1000V
- Working temperature range 0 – 45°C
- IP 54 protection
- Remote monitoring: GSM / Internet
- 5yr Battery warranty
COMP HERCULES HC 12050
Part No.: 12050111
Suitable to power a big home or office including 3 2HP A/C
Certificate
Features
- All-in-One scalable lithium battery energy storage system with UPS
- Standard Lithium battery capacity 20.48KWh/400 Ah
- Each battery module capacity 5,12KWh
- Maximum stackable battery modules in parallel 8 units.
- Battery type LiFePO4
- Battery cycle stability > 6000 cycles
- Life span over 10yr
- 12 KW offgrid solar inverter with transformer
- Output voltage / frequency 230V / 50Hz
- Maximum PV input power 7KWp
- MPPT input voltage range 60 – 145V
- Online UPS function
- Operational temperature -10°C to 40°C
- Cooling method forced air cooling
- Certifications: IEC 62619, UN 38.3, CE, EMC
- Warranty 5yr (10yr optional)
